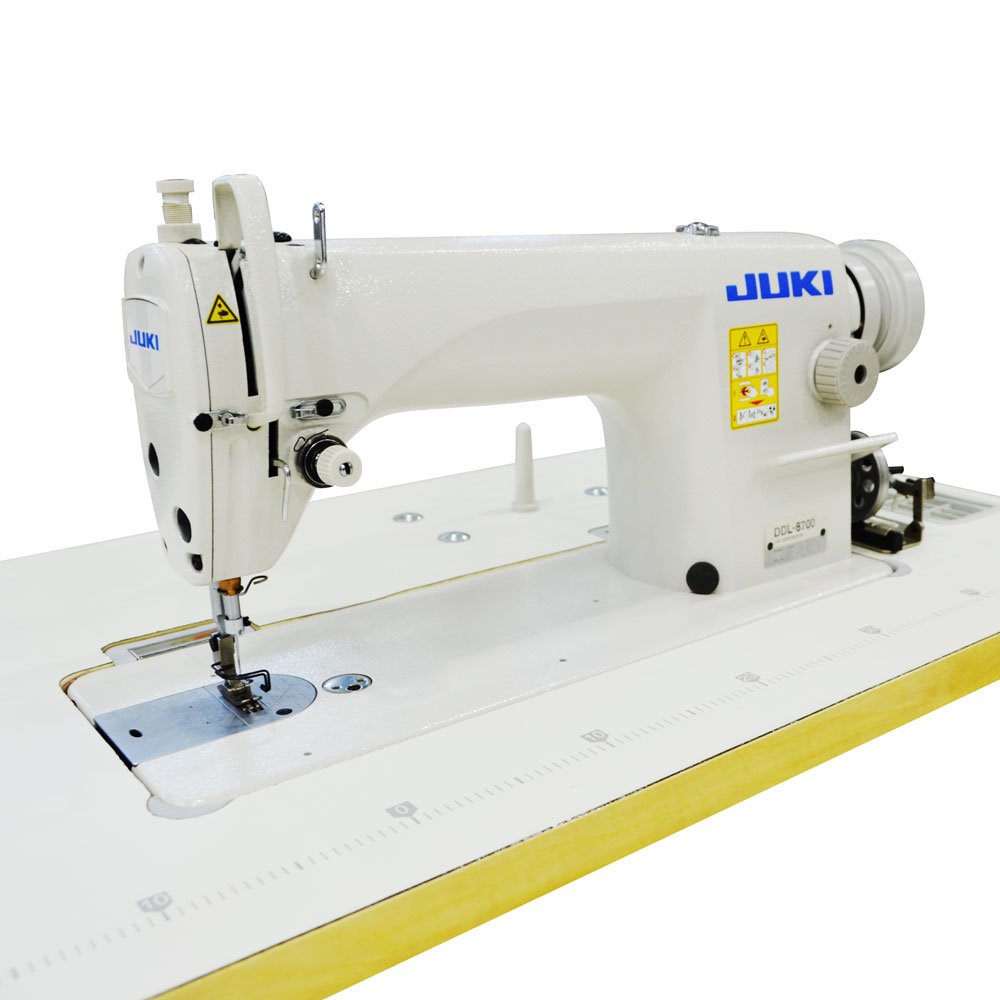

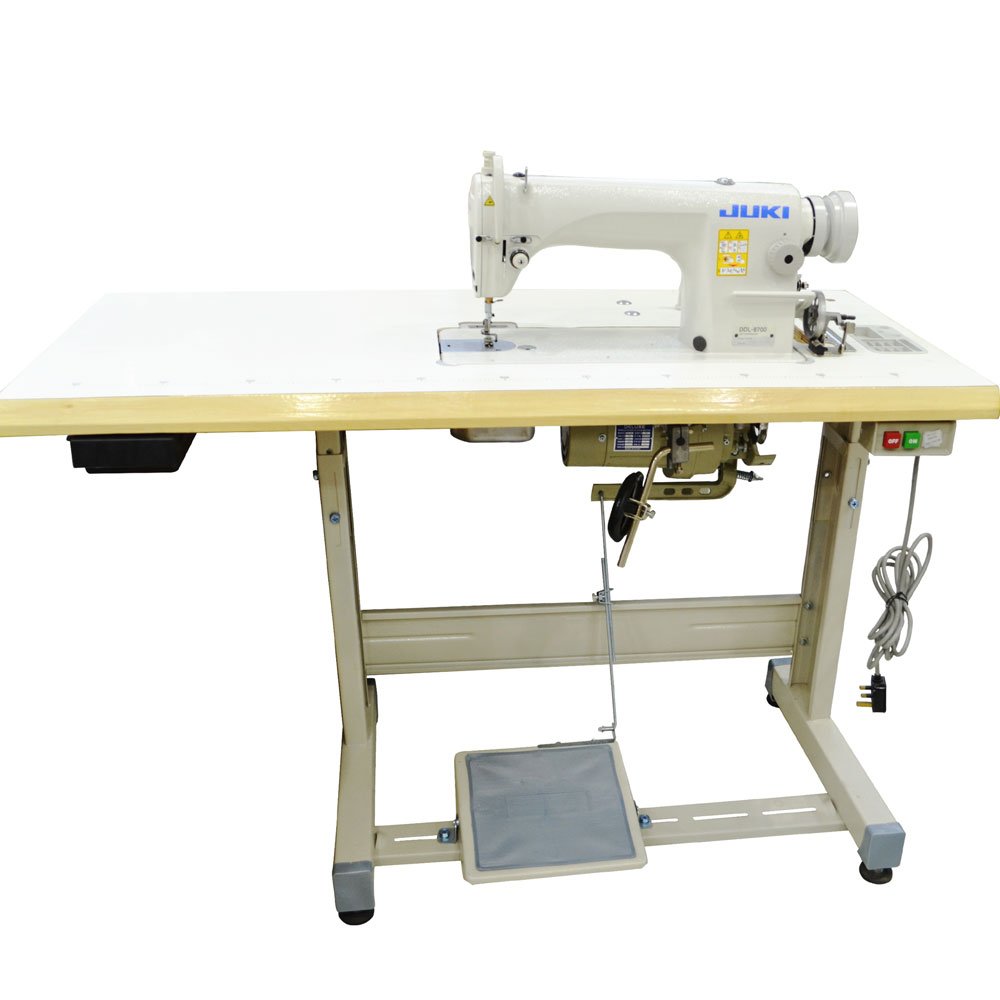

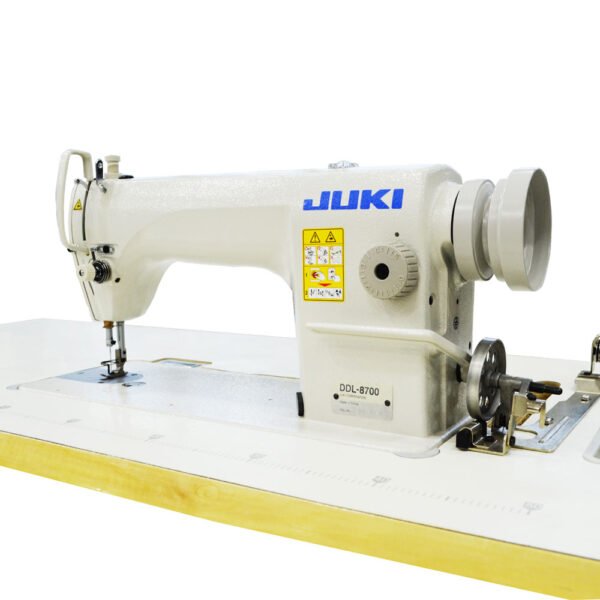

JUKI DDL-8700 High-Speed, 1-Needle, Lockstitch Sewing Machine.
The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology. Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material. This machine inherits all the desirable features, such as high-speed stitching performance 5,500sti/min, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lock-stitch machines.
Juki DDL-8700 High-speed, 1-needle, Lock-stitch Machine
JUKI’s newly designed unique lock-stitch machine is perfectly designed for creating 21st century fashion
The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology. Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material. This machine inherits all the desirable features, such as high-speed stitching performance 5,500sti/min, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lock-stitch machines.
Outstanding responsiveness to the materials being sewn
By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, this Juki DDL-8700 industrial sewing machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.
Easy to mantain
Enhanced maintainability is ensured by the improved machine head, such as incorporation of an eccentric pin that is used to adjust the feed dog. In addition, the machine is provided with a mounting seat for attachment to improve workability while replacing the attachment and increasing the durability of the machine bed surface.
Easy to operate
By providing a presser foot with a higher lift (13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.
Machine Specifications
- Application: Medium-weight
- Max. sewing speed: 5,500 Stitches per Minute
- Max. stitch length: 5mm
- Needle bar stroke: 30.7mm
- Lift of the presser foot by hand: 5.5mm
- Lift of the presser foot: 13mm
- Needle (at the time of delivery): DB×1 (#14) #9~#18 / 134 (Nm90)
- Feed dog: 4-row (3-row)
- Hook: Automatic-lubricating full-rotary hook
- Lubrication: Automatic
- Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
- Weight of the machine head: 28kg
Brands | |
---|---|
Machine Type |
Model name | DDL-8700 |
Application | Medium-weight |
Max. sewing speed | 5,500sti/min |
Max. stitch length | 5mm |
Presser foot | By knee: 13mm |
Needle | DB×1 (#14) #9~#18,134 (Nm90) |
