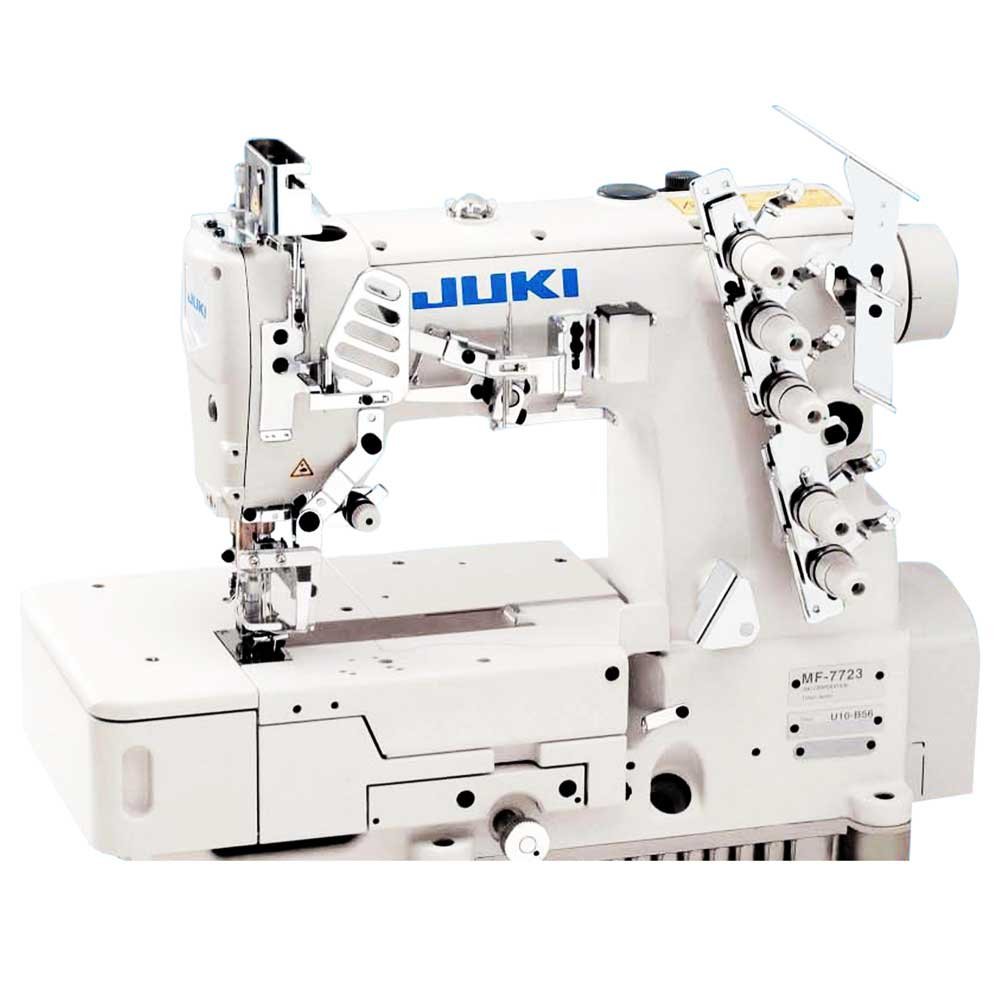

JUKI MF-7723 3-Needles Industrial Coverstitch Machine

MF7723-U10-B56

The Juki MF-7723-U10-B56 model can be used for many applications thanks to the easy adjustment of the tension of the wires in response to the various types of fabrics.
Changing the type of threading gives a different control of the thread; this allows to obtain soft seams, suitable for any type of material, both for intimate and outdoor clothing.
The Juki MF-7723-U10-B56 flatbed, with 2-3 needles with top and bottom cover.

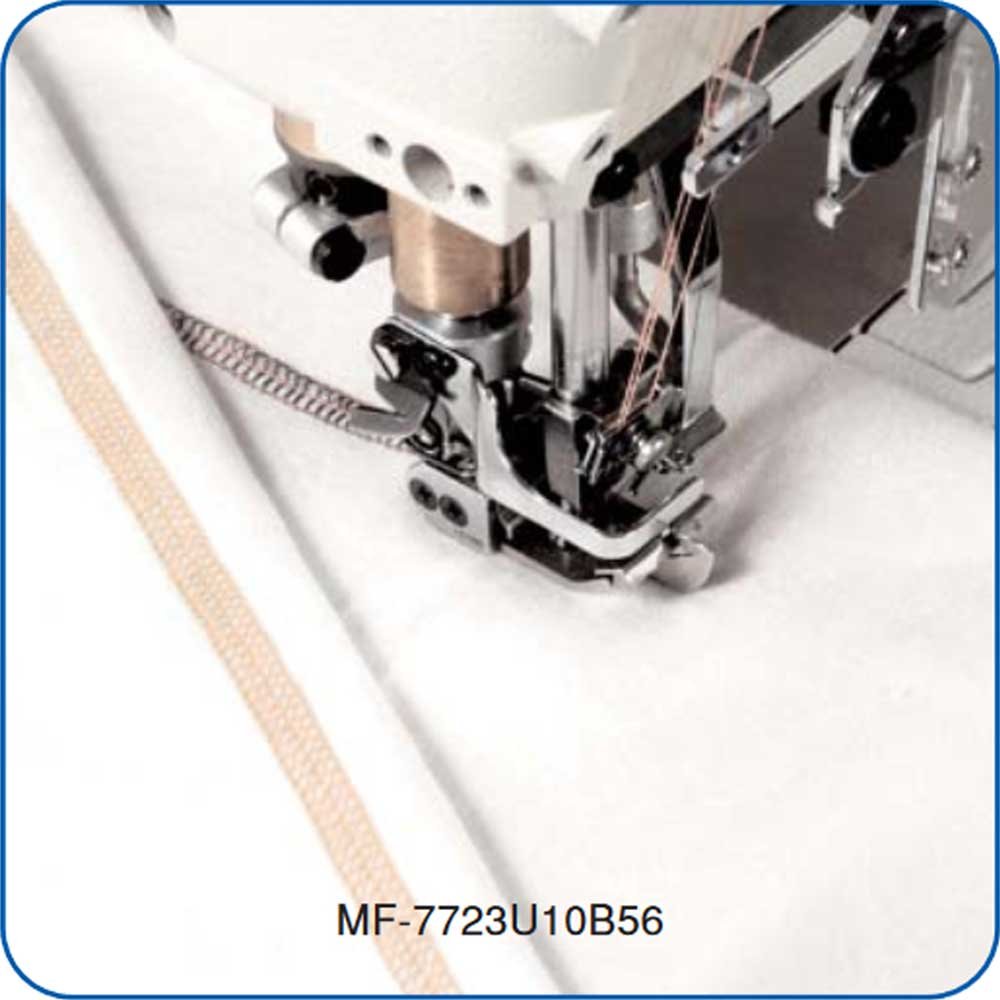

The model U10 (universal type) can be used in a wide range of applications, such as sleeves, bottom hem of the T-shirts and cover stitching on sweatshirts, knitwear and sportswear.

3-Needle, 4 -Thread, Bottom Coverstitch. With Micro-adjust Differential Feed. For 3 needle operations on knit shirts, underwear, sports and leisure wear.

Sewing Speed max. 6,500 rpm
Stitch Length: 1.2-3.6 mm (up to 4.4mm)
Stitch length controlled by dial
Stitch/Seam type: 406EFa-1 (inv)
Needle Spacing: 56 (5.6mm) 48(4.8mm) 64 (6.4mm) available
Pressure Foot Lift: 5mm (with top and bottom cover stitch) 8mm (with bottom cover only)   MicroLift standard Feeddog Inclination Adjustment standard
Needle bar stroke converting function: standard (31mm) Heavy duty (33mm) Cartridge oil filter standard Lubrication automatic Needles UY128GAS 9-14 (standard size 10)
